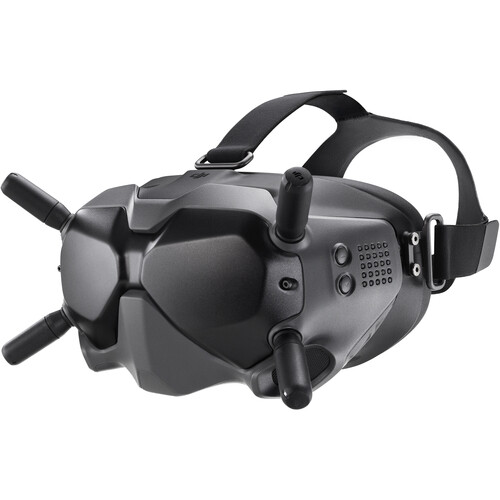

DJI FPV Goggles V2

Drone accessories

Description

https://youtu.be/LVoPGlNvHhw

Overview :

  • Requires a Drone with FPV Air Unit
  • 2 x 2" Displays
  • Receives Low-Latency Video up to 810p120
  • 144 Hz Refresh Rate
  • Up to 110 Minutes of Battery Life
  • Capture Live Video onto microSD
  • 2.4 & 5.8 GHz Signal Support
  • Requires FPV Air Unit for 5.8 GHz
  • Record Footage on Optional microSD
  • Antennas & Headband Included

more details

DJI FPV GOGGLES V2 Specs

Screens Size: 2 x 2" / 5.1 cm
Screen Resolution: 1440 x 810 (Each)
Refresh Rate: 144 Hz
FOV: 30 to 54°
Image Size: 50 to 100%
Interpupillar Distance Range: 2.3 to 2.8" / 58 to 70 mm
Frequency 2.4 GHz: 2.400 to 2.4835 GHz
5.8 GHz: 5.725 to 5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: 2.400 to 2.4835 GHz
2.4 GHz: (FCC/MIC) ≤28.5 dBm, (CE) ≤20 dBm, (SRRC) ≤20 dBm, and (MIC) ≤20 dBm
5.8 GHz: 5.725 to 5.850 GHz
5.8 GHz: (FCC/MIC) ≤31.5 dBm, (CE) ≤14 dBm, and (SRRC) ≤19 dBm
Live View Low-Latency Mode: 810p120
High-Quality Mode: 810p60
Video Formats Record: MP4 (H.264)
Play: MP4, MOV, MKV (Video: H.264; Audio: AAC-LC, AAC-HE, AC-3, MP3)
Memory Card microSD (Up to 256 GB)
Battery Capacity: 1800 mAh
Voltage: 9 V (Max)
Type: LiPo 2S
Charging Temperature: 32 to 113°F / 0 to 45°C
Energy: 18 Wh
Max Charging Power: 10 W
Battery Life: Approximately 110 Minutes, at Max Brightness in 77°F / 25°C Environment
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions With Antennas: 8 x 5 x 4.3" / 20.2 x 12.6 x 11 cm
Without Antennas: 7.2 x 4.8 x 4.3" / 18.4 x 12.2 x 11 cm
Weight With Headband & Antennas: 14.8 oz / 420 g

Packaging Info

Package Weight 1.98 lb
Box Dimensions (LxWxH) 7.9 x 6.7 x 4.8"
